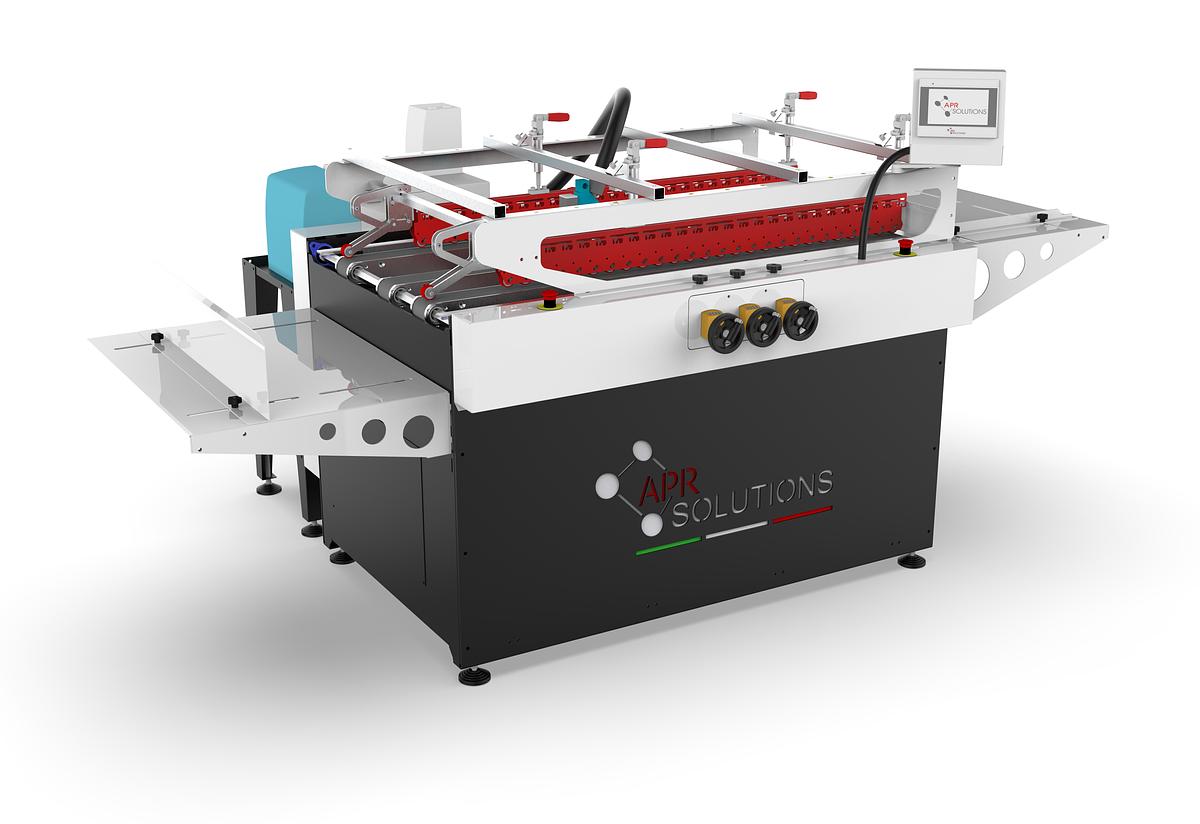

APR Box 1 Carton and Box Making Machine

APR Box 1 Carton and Box Making Machine

Description

The APR Box 1 Folder Gluer Machine is a versatile and reliable semi-automatic solution designed for producing a wide range of carton and paperboard products. It is ideal for packaging manufacturers, print finishers, and converting businesses. The Box 1 efficiently glues and folds straight-line boxes, conical boxes, folders, envelopes, and custom-shaped packaging.


Featuring a manual feeder system, the APR Box 1 offers excellent flexibility for short- to medium-production runs while maintaining high levels of accuracy and consistency.


The machine is capable of producing:

  • Straight-line boxes
  • Conical boxes
  • Custom-shaped cartons and cases
  • Two-pocket folders
  • Standard envelopes
  • Courier envelopes with external flaps


For enhanced production capabilities, the APR Box 1 can be equipped with RAP 25/50 applicators or RAP Strip heads, allowing for the application of double-sided tape, tear tape, and peel-and-seal adhesive systems commonly used in mailing and e-commerce packaging.


Features

  • Manual feeder
  • Autonomous and movable conveyors
  • Funnel bending system
  • Paper conveyor system with adjustable pressure
  • Manual folder
  • Hot melt glue system controlled through a 7’’ touch screen

Options

  • Mobile pocket Tipper Plate
  • RAP double-sided adhesive applicator
  • Automatic feeder
  • Pre-printed labels LRX 10 HP applicator



Why Choose the APR Box Plus 1?

The APR Box Plus 1 is the ideal solution for businesses looking to automate the production of cartons, folders, envelopes, and mailing packs. Its ability to combine folding, gluing, and tape application on a single platform helps reduce production time, improve consistency, and increase operational efficiency. Whether you’re producing retail packaging, presentation folders, courier envelopes, or e-commerce mailers, the APR Box Plus 1 delivers reliable performance and exceptional finishing quality.


If you require more information or would like a brochure, please contact us directly on 01582 562518

Specifications

ManufacturerAPR Solutions
ModelBox 1
Year2026
ConditionNew
Stock Number000000001
Max sheet size720 x 1020 mm.
Min sheet size150 x 180 mm.
Paper weightMin 200 g/m² Max 650 g/m²
Maximum mechanical speed80 m/min
Power Supply:400 V 3 phase + N + E 50 Hz
Power Consumption:2 Kw + 6 Kw for the Hot Melt Gluing System
Compressed Air supply6 BAR with a ½ inch connection.
Dimensions (L x W x H):272 x 158 x h 140 cm
Net weight1104 kg
