Samed Darix Evolution Turbo
Samed Darix Evolution Turbo
Description

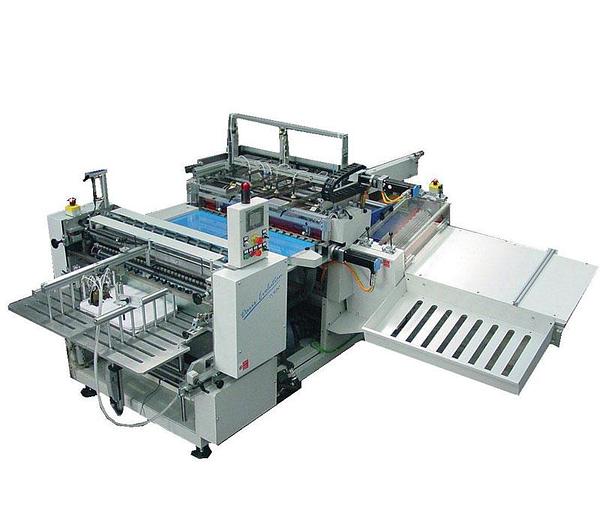

Darix Evolution Turbo
Automatic case maker
Introducing the DARIX Evolution Turbo Case Maker - the ultimate solution for your case-making needs!
With its breakthrough automatic cover feeder/gluer, this machine streamlines the case-making process by feeding glued covers into positions for the board feeder. The case is then forwarded into the patented brush and corner turning system, without operator intervention. This results in an impressive running speed of up to 15-20 cases per minute!
Moreover, with quick and easy set-up, which includes automatic size setting, you can save valuable time and increase production efficiency.
The DARIX Evolution Turbo Case Maker is the perfect choice for businesses looking to improve their case-making capacity.
Features
- High Production Speed
- Automatic Size Setting
- Automated Feeding
- Integrated Gluing Unit
- Patented Turning-In System
Options
- Extra size machine: 700×900 mm
- Kit to feed up to 5 board pieces
If you require more information or a brochure, please contact us direct on 01582 562518
Specifications
| Manufacturer | Samed |
| Model | Darix Evolution Turbo Automatic case maker |
| Year | 2026 |
| Condition | New |
| Stock Number | 0000021 |
| Minimum size (open Case) | L: 190mm H: 160mm |
| Maximum size (open Case) | 460x900mm |
| Minimum thickness of the board | 1.5mm |
| Spine width | Min: 10mm - Max: 100mm |
| Overlap covering material | Min: 15mm - Max:30mm |
| Maximum thickness of the board | 6 mm - Possibility to work different board thickness on the same cover |
| Cover material types | Textile, laminated paper, photo paper, imitation leather, PVC polyurethene |
| Cover material thickness | From 80 up to 400 g/m2 |
| Glue tank capacity | 20 kg Hot animal Glue (Cold glue for lining works only) |
| Productivity | Up to 20 pcs/minute |
