Peroni Box Wrapper EL

Peroni Box Wrapper EL

orCall +44 1582 562 518

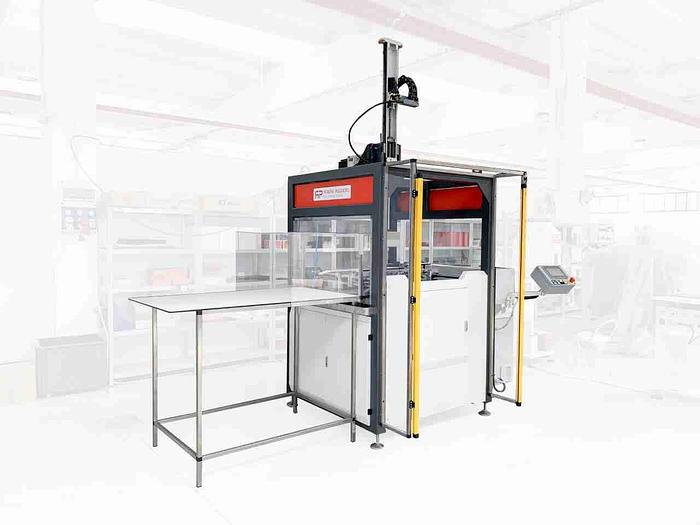

Fully modular system Quick size change over up to 350 wrapped products per hour BOX WRAPPER – EL SEMI-AUTOMATIC MACHINE TO PRODUCE WRAPPED RIGID BOXES MAX 13cm HIGH. Manual positioning of the glued paper on the last (paper gluing using a separate gluing machine). Fully automatic coating/wrapping of the box and ejection of the finished product onto the collection surface. Touch-screen display for automatic size change, setting parameters and memorizing the various work programs. Technical features Paper with gluing surface as 700 x 1000mm. Boxes grooved and die-cut. min. 80 x 80mm – Max. 400 x 400mm. height min.20mm – max. 130mm. Production capacity: 300/350 wrapped boxes/hour (subject to sizes, materials, and operator).


ManufacturerPeroni Ruggero
Paper thicknessfrom 110gr./m². to 150gr./m².
Job-size change over5 min.
Mechanical speed500 cycles/hour.
