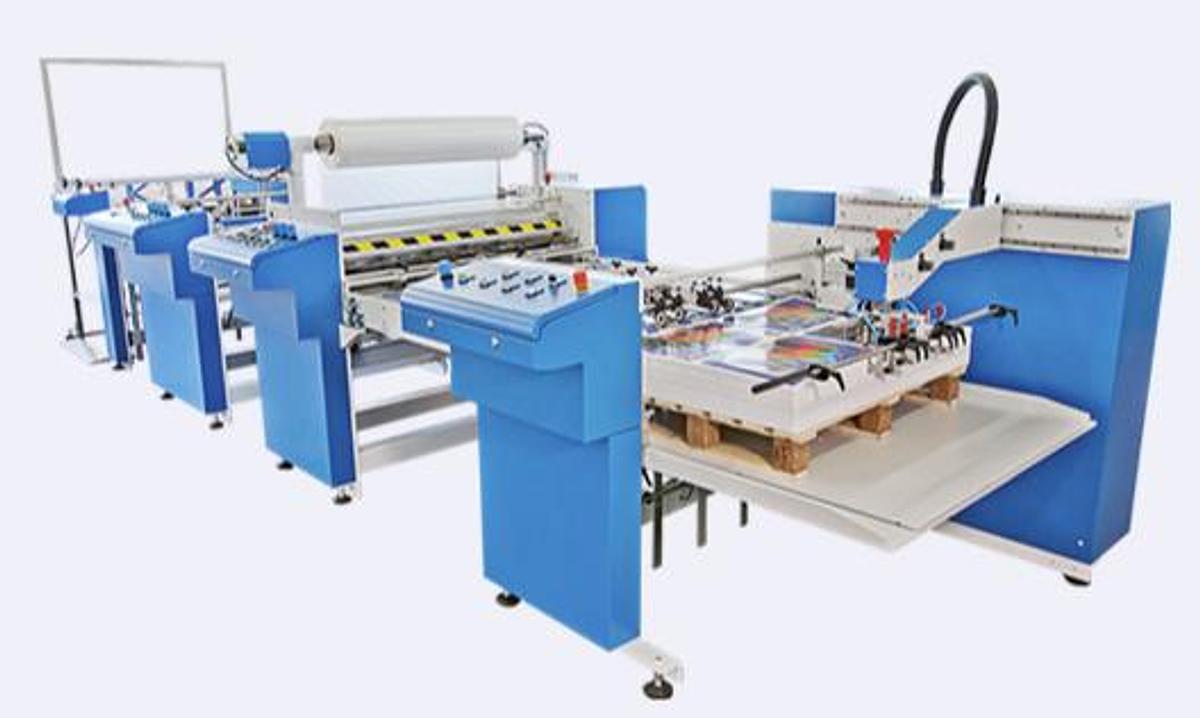

D & K Polaris High speed B1 Laminating machine

D & K Polaris

High speed B1 Laminating machine

The Polaris is a high-speed, fully automated B1 single-sided laminator that produces sheets up to 760mm x 1050mm or 1050mm x 1050mm. A perfect machine for volume production, the Polaris is supplied with pallet loading, and its optional stacker allows sheets to be delivered directly onto a pallet for ease of operation and minimal operator intervention.

• Features
• Speed: 60m/minute
• Weight: 2100kg
• Electrical requirements: 3 phase 15kW, 400v
• Air requirements: 25m3/hr, 7 bar
• Maximum recommended stock: 600 gsm
• Minimum recommended stock: 115 gsm (optional 90gsm)
• Maximum Sheet Size: 750mm x 1050mm
• Minimum sheet size: 210mm x 220mm
• Nip pressure (pneumatic): 60,0kN
• Heating: Band elements
• Rear separation feeder head
• Laminate up to 600gsm

If you require more information or a brochure, please contact us direct on 01582 562518
