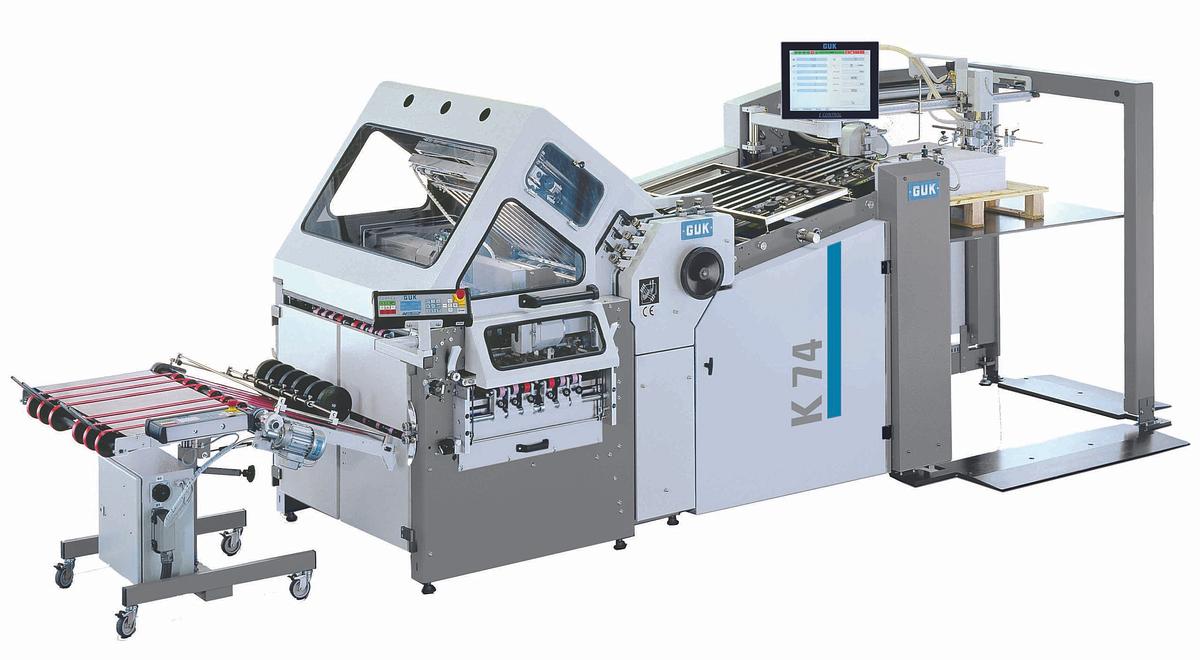

GUK K 54/74 Cross-Fold Machine With Pallet-Feeder

GUK K 54/74 Cross-Fold Machine with Pallet Feeder for High-Performance Folding Production. The GUK K 54/74 Cross-Fold Machine with Pallet Feeder is a highly efficient and versatile folding system designed for the production of complex folded products with maximum precision and productivity. Combining advanced buckle folding technology with a cross-folding section, the machine enables the efficient production of a wide range of folding configurations in a single pass. Equipped with a high-capacity pallet feeder, the K 54/74 allows operators to load sheets directly from pallets, eliminating the need for restacking and significantly reducing production preparation time. Designed for commercial printers, pharmaceutical manufacturers, direct mail producers, and print finishing companies, this system delivers exceptional folding accuracy, high production speeds, and reliable performance. With advanced touchscreen controls, automatic jam detection, and optional knife-folding modules, the GUK K 54/74 provides an ideal solution for demanding folding applications requiring flexibility, efficiency, and consistent quality.

Direct Pallet Loading for Faster Production

The integrated pallet feeder allows paper stacks to be loaded directly onto the machine without the need for intermediate handling or restacking. This significantly reduces setup times and improves production efficiency, enabling operators to begin production quickly while minimising downtime between jobs. The automated feeding system ensures precise sheet separation and smooth material transport throughout the folding process.

For high-volume production environments, this translates into higher productivity, reduced labour requirements, and improved workflow efficiency.

Precise Cross Folding for Complex Fold Patterns

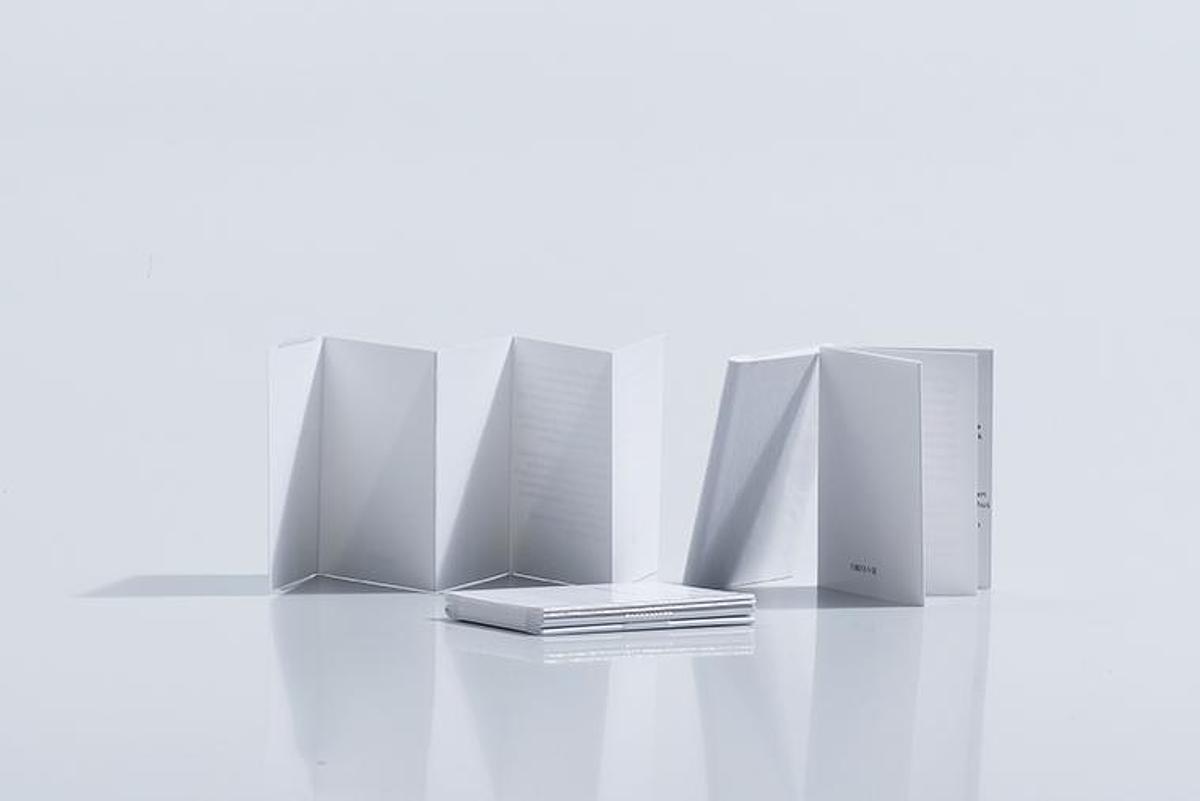

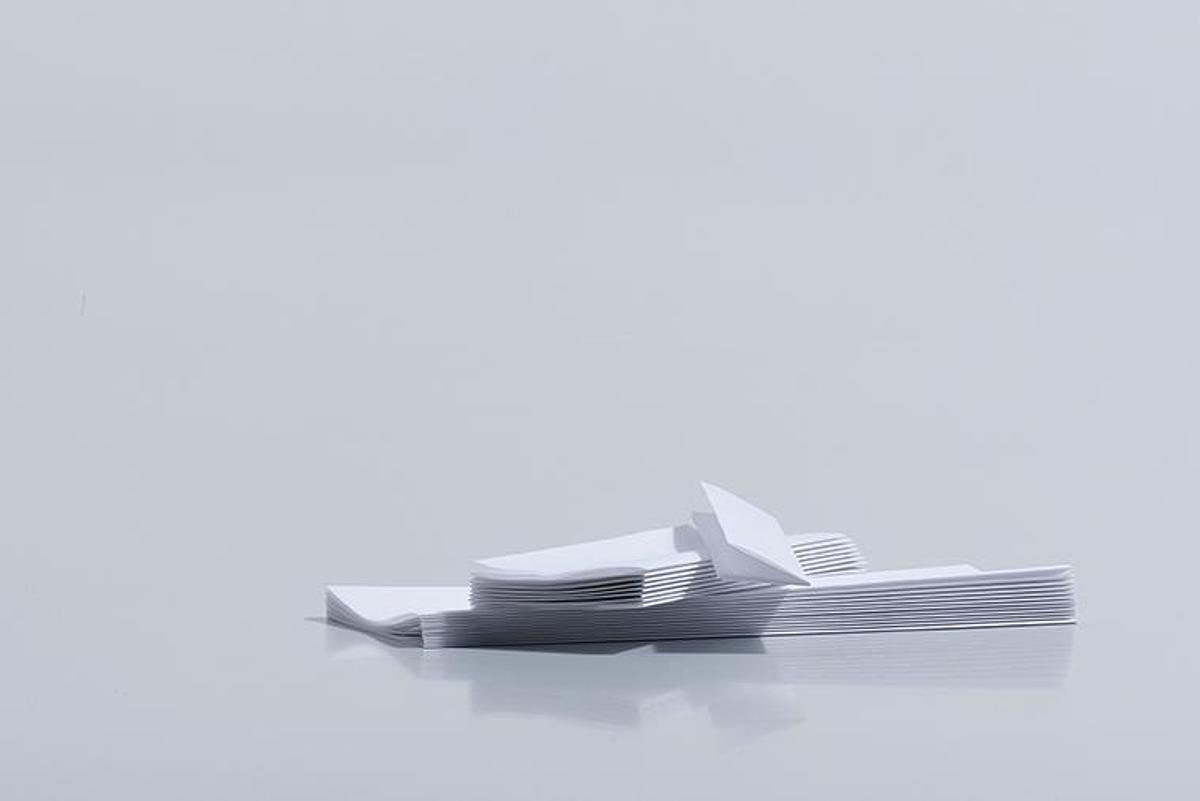

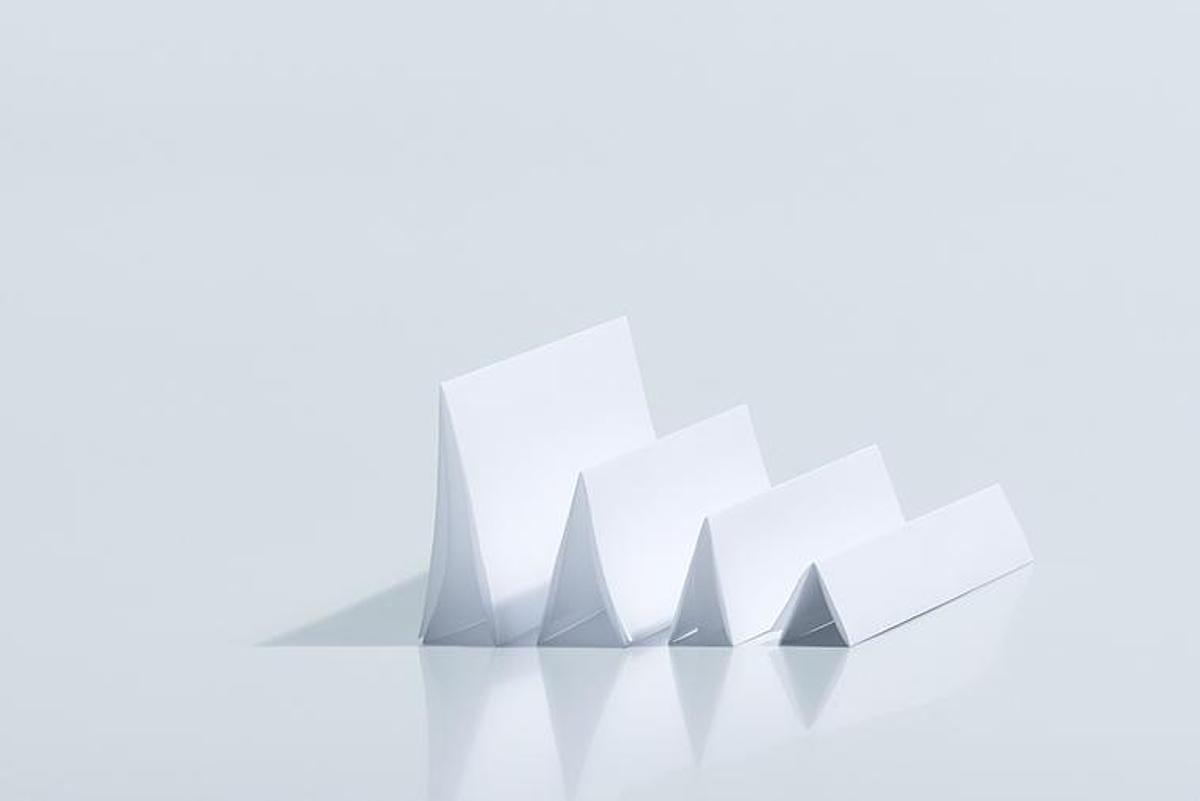

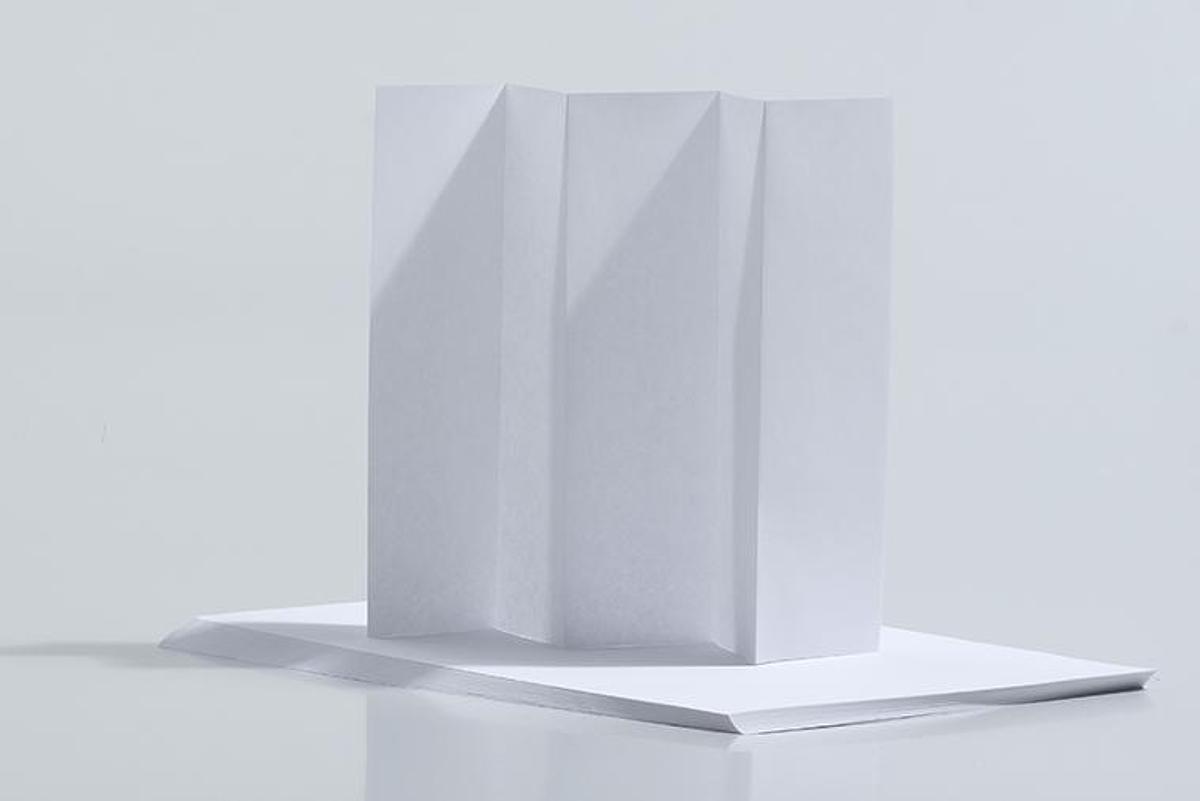

The GUK K 54/74 combines a buckle-fold section with a cross-folding system, allowing complex folded products to be produced accurately in a single operation. This advanced folding configuration enables the production of:

• 8-page folds
• 16-page folds
• Up to 32-page folds when combined with the optional ZK 500 Knife Folding Unit

By combining buckle folding and knife folding technologies, the machine can process sophisticated folding sequences while maintaining excellent fold accuracy and repeatability. This makes the system particularly suitable for pharmaceutical leaflets, manuals, technical documentation, maps, and specialist folded products.

Advanced Control and Reliable Automation

The K 54/74 is equipped with modern computer-controlled operation featuring a touchscreen interface and networking capability. The intelligent setup guide simplifies job preparation and helps operators achieve fast and accurate machine settings. Production parameters can be monitored easily, providing complete visibility throughout the production process. Reliable automatic jam detection ensures consistent production quality by reducing waste and minimising interruptions during operation.

High-Speed Feeding and Continuous Performance

Precise lifting table control ensures exact sheet separation and smooth feeding performance, contributing to exceptionally high output rates. The advanced feeding system maintains a continuous flow of material into the folding section, helping businesses maximise machine utilisation and maintain efficient production schedules.

The machine can be configured with various feeding options including:

• Pallet Feeder
• Round Pile Feeder
• Flat Pile Feeder

This flexibility allows businesses to tailor the system to their specific production requirements.

Features

• Cross-fold machine for complex folding applications
• Integrated pallet feeder for direct pallet loading
• No need for sheet restacking
• Combination of buckle folding and cross folding technology
• High-speed production capability
• Accurate sheet separation through precise lifting table control
• Automatic jam detection system
• Computer-controlled operation with touchscreen interface
• Networking capabilities for production management
• Easy-to-use setup guidance system
• Suitable for complex folding sequences
• Produces 8-page, 16-page, and up to 32-page folds
• Compatible with optional ZK 500 Knife Folding Unit
• Available with pallet feeder, round pile feeder, or flat pile feeder
• Optional electronic pocket setup
• Optional easy roller adjustment system
• Robust industrial construction
• Designed for continuous production environments

Applications

The GUK K 54/74 Cross-Fold Machine is ideal for producing:

• Pharmaceutical leaflets
• Package inserts
• Instruction manuals
• Technical documentation
• Maps and charts
• Direct mail products
• Folded brochures
• Financial documents
• Healthcare communications
• Product information sheets
• Marketing materials
• Commercial print products
• High-page-count folded products
• Specialist folding applications

Why Choose the GUK K 54/74 Cross-Fold Machine?

The GUK K 54/74 Cross-Fold Machine with Pallet Feeder offers an exceptional combination of automation, folding precision, and production flexibility. Its ability to process complex folding sequences in a single pass helps reduce handling, improve efficiency, and maintain consistently high product quality.

The direct pallet loading system minimises setup times and operator involvement, while the advanced control system ensures simple operation and reliable production performance. When combined with the optional ZK 500 Knife Folding Unit, the machine becomes an extremely versatile solution capable of producing highly complex folding configurations. Whether producing pharmaceutical inserts, manuals, direct mail campaigns, maps, brochures, or technical documentation, the GUK K 54/74 Cross-Fold Machine with Pallet Feeder delivers outstanding folding quality, maximum productivity, and reliable high-volume performance for modern print finishing operations.
