Peroni Box Wrapper 24
Peroni Box Wrapper 24
Description
Peroni Box Wrapper 24 Semi-automatic machine to produce wrapped rigid boxes
Automatic simple line to wrap high-quality rigid boxes, composed by automatic paper feeder; Gluing unit with automatic viscometer
Manual positioning of the box onto the glued paper with mechanical centering device (motors & sensors)

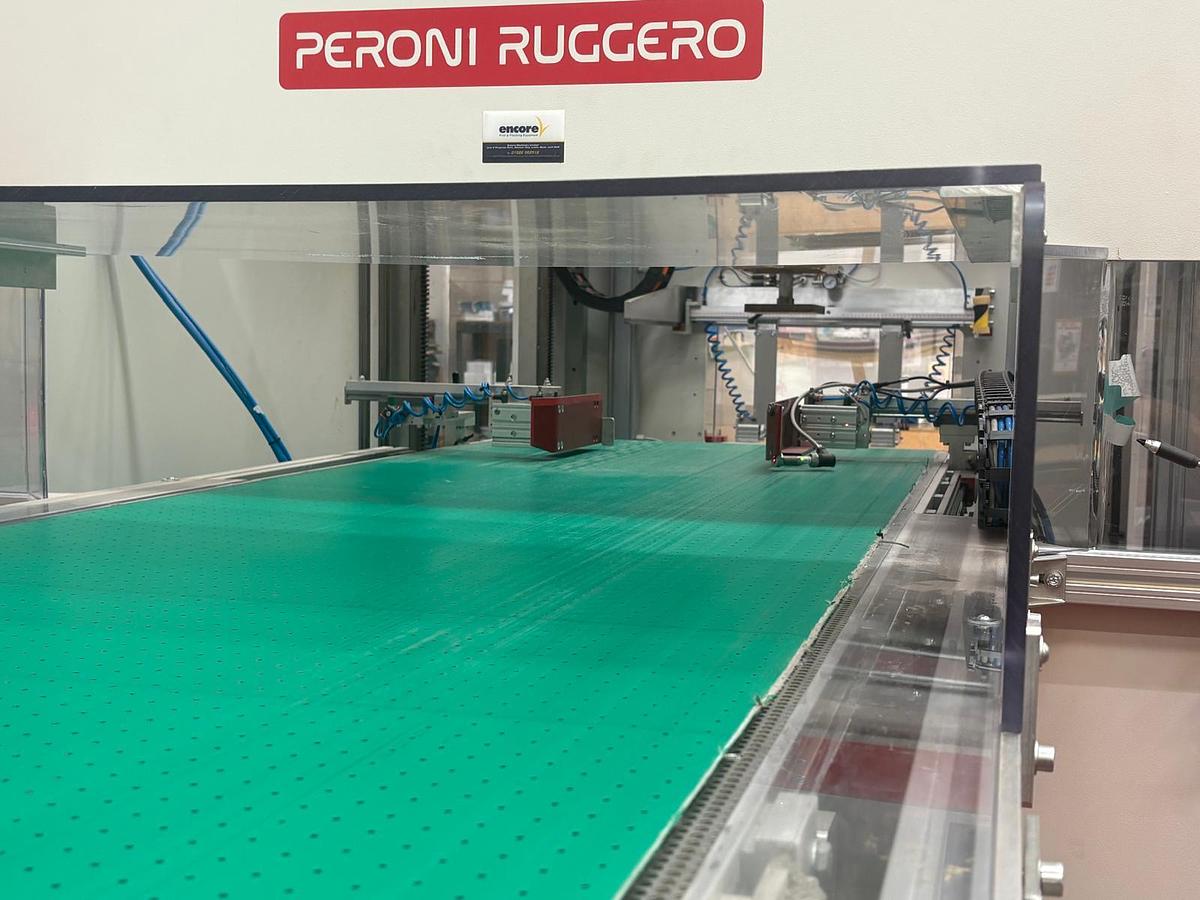

Automatic centering & translation of the materials to the automatic wrapping unit by telescopic conveyor tape
Automatic wrapping unit
Pick & Place system to move the ready box to the delivery unit.
Moulds for each box size can be made from wood and easily installed/removed by a quick-release system. The semi-automatic version can be upgraded with an automatic paper feeder, gluing unit, and box mechanical centering device (motors & sensors).
Features
- Fully modular system
- Quick size change over
- up to 350 wrapped products per hour
- Centering Systems
If you require more information or a brochure, please contact us direct on 01582 562518
Specifications
| Manufacturer | Peroni Ruggero |
| Model | Box Wrapper 24 |
| Year | 2020 |
| Condition | Used |
| Stock Number | 00000194 |
| Paper thickness | from 110gr./m². to 150gr./m². |
| Job-size change over | 15-20min. |
| Operator/s req. | 1 |
| Production capacity | 350 Wrapped boxes p/hour |
| Min box size | 50x50mm |
| Max box size | 500x500mm |
| Min height | 20mm |
| Max height | 240mm |
