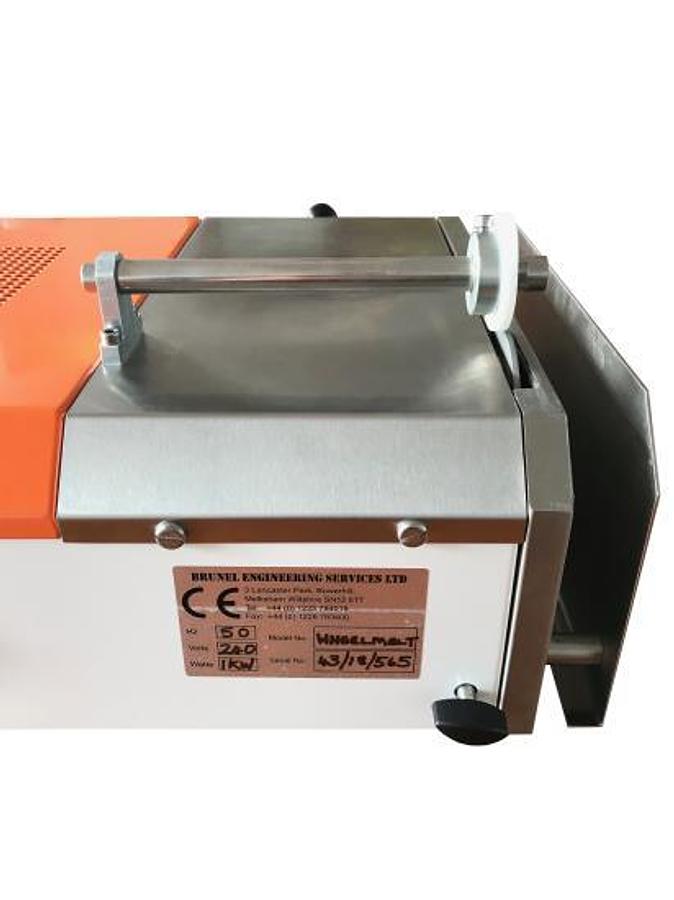

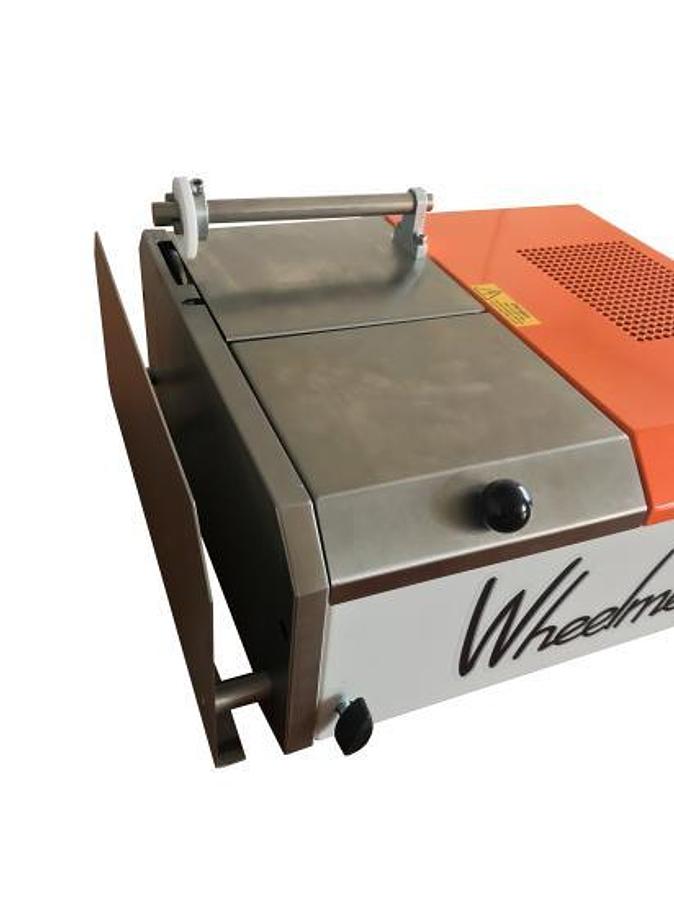

Hot melt sideseam box sealing gluing machine

The Igluetech WheelMelt is a versatile hot melt hand gluing system designed for the fast, accurate, and cost-effective sealing of corrugated boxes, cartons, and packaging products. Built to withstand demanding industrial environments, the WheelMelt provides a consistent adhesive application across the entire glue flap, ensuring reliable bonding and professional sealing every time.

Ideal for the corrugated, packaging, and e-commerce industries, the WheelMelt offers a quick and simple method for applying hot melt adhesive by hand, while reducing adhesive waste and lowering production costs.

Whether you are sealing carton flaps, glueing corrugated side seams, or handling specialised packaging applications, the WheelMelt delivers flexibility, portability, and dependable performance.

Key Features & Benefits

• Fast and hassle-free hot melt glue application
• Accurate glue coating across the full glue flap with application wheel
• Economical operation with potential adhesive cost savings
• Durable all-metal construction for harsh production environments
• Compact and portable design for easy transportation
• Adjustable glue application coat weight & widths to suit different products
• Suitable for a wide range of carton and packaging sizes
• Consistent adhesion for improved packaging quality
• Compatible with pressure-sensitive hot melt adhesives
• Multiple application wheel & different widths available

Designed for Packaging & Corrugated Applications

The WheelMelt is widely used throughout the packaging industry for:

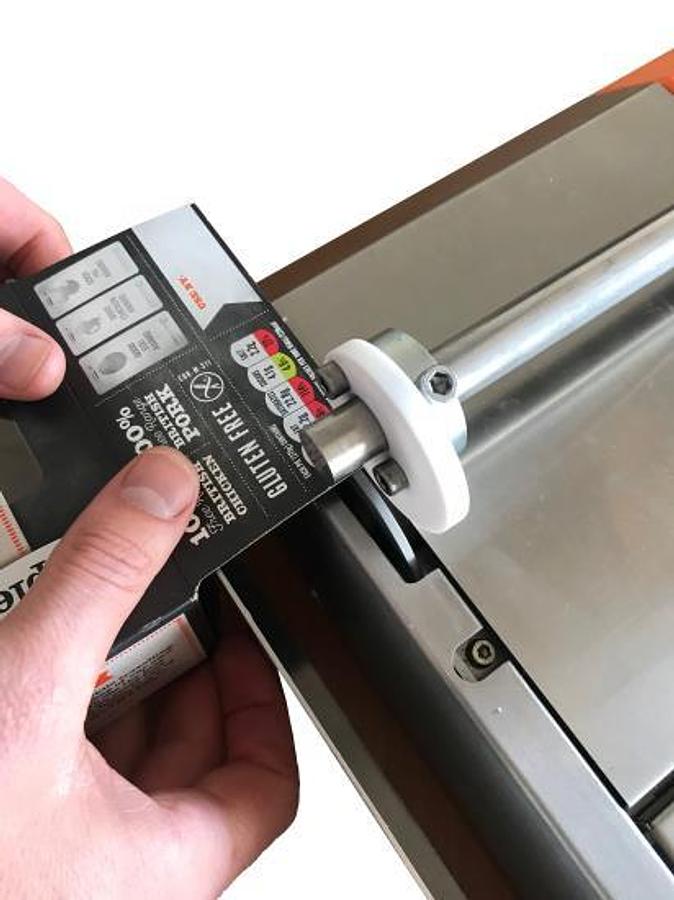

• Corrugated box side seam glueing & sealing
• Carton flap sealing
• Box side seam glueing
• Envelope sealing
• E-commerce packaging
• Printed carton assembly
• Manual packaging operations
• Low to medium volume production lines

Special application attachments can also be fitted for bespoke packaging applications.

Accurate & Controlled Glue Application

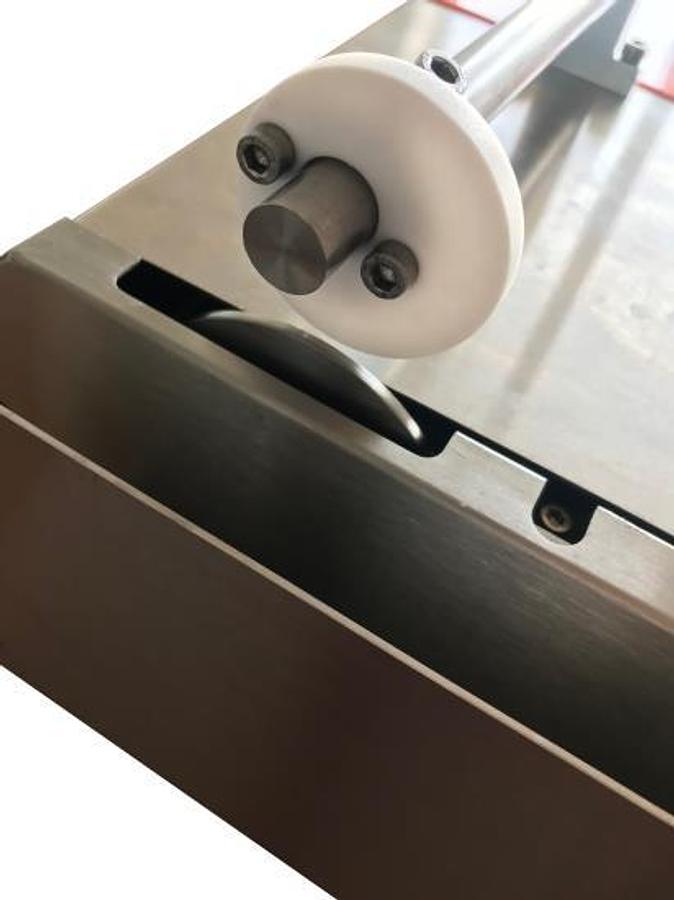

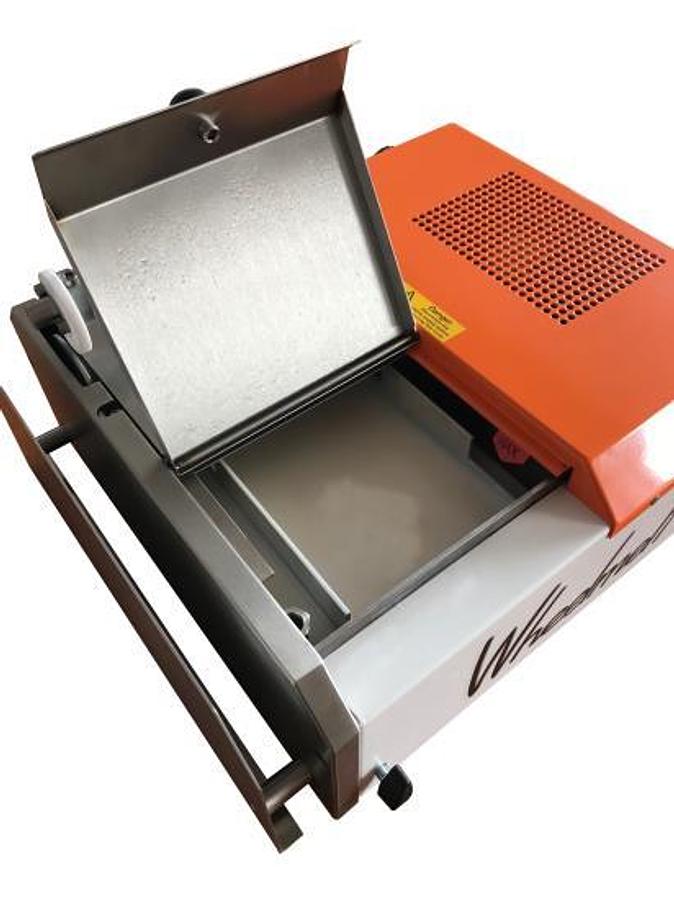

The WheelMelt is equipped with a heated adhesive tank that continuously supplies hot melt glue to the application wheel, ensuring a smooth and precise adhesive coating across the glue flap for reliable sealing performance. An adjustable doctor blade system allows operators to control the amount of glue applied, enabling either heavier or lighter adhesive coatings based on product requirements. Additionally, different wheel widths and multiple wheel configurations can be selected to accommodate various packaging formats and glue patterns.

Technical Specification

Carton Flap Capacity: 15mm – 300mm deep

Maximum Carton Width: Up to 450mm

Operating Speed: Up to 20 glue flaps per minute

Glue Tank Capacity: Approx. 2 Litres

Adhesive Type: Raw hot melt adhesive chips

Temperature Range: Adjustable up to 165°C

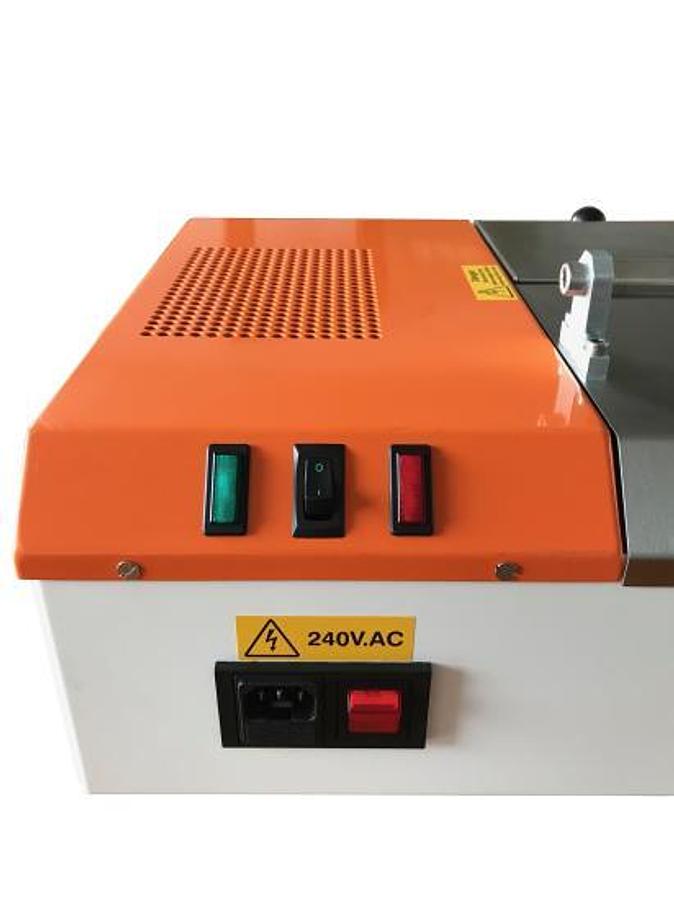

Electrical Supply: 220-240V 1Ph 50Hz

Alternative Voltage: 110V 50/60Hz available

Machine Dimensions: 365mm W x 390mm L x 150mm H

Weight: Approx. 25kg

Built for Reliability

The WheelMelt is manufactured with a robust all-metal design, ensuring it is built to last in busy packaging and production environments. Features such as an over-temperature safety cut-out and an adjustable pressure wheel guarantee safe and reliable operation throughout production.

Why Choose the igluetech WheelMelt?

• Reduces packaging sealing time
• Improves glue consistency and adhesion
• Lowers adhesive usage and operating costs
• Provides a flexible solution for multiple packaging applications
• Portable and easy to operate
• Trusted by packaging industries worldwide

If you require more information or a brochure, please contact us direct on 01582 562518
