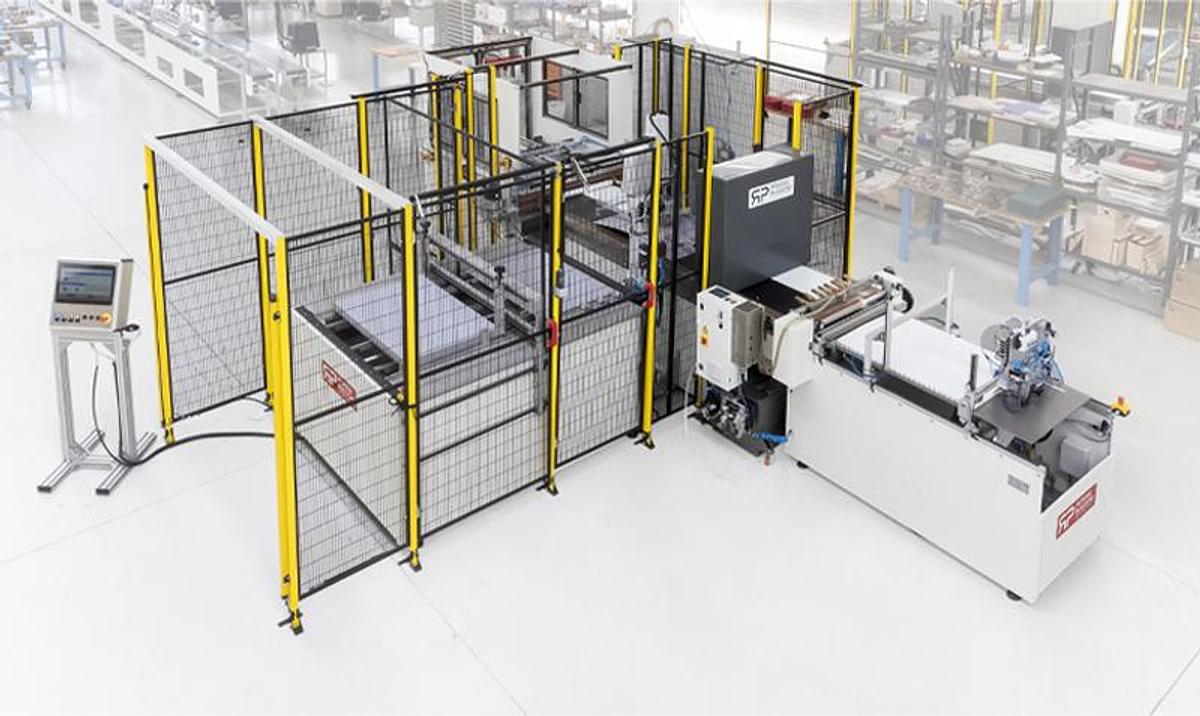

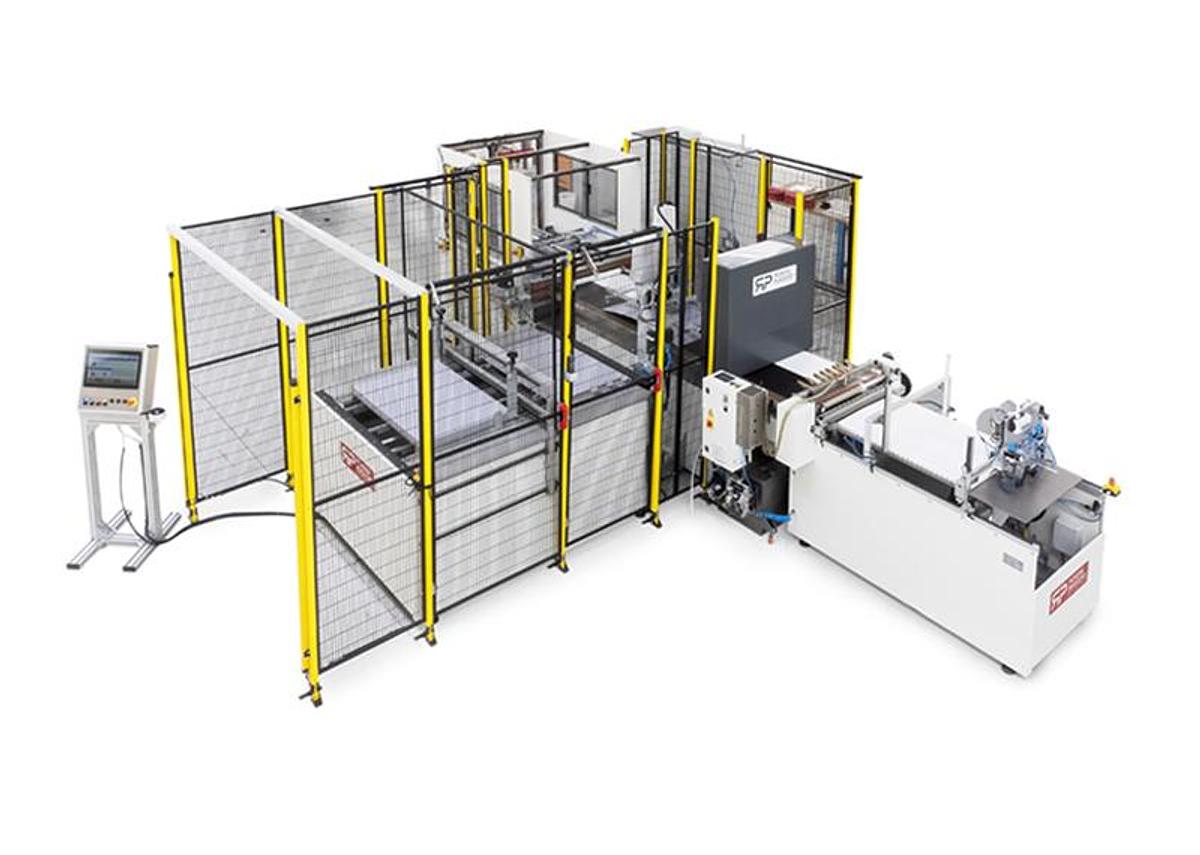

Peroni PLS EVO 70/120 Automatic

Peroni PLS - EVO 70-120

Fully Automatic Glueing and Lining Machine

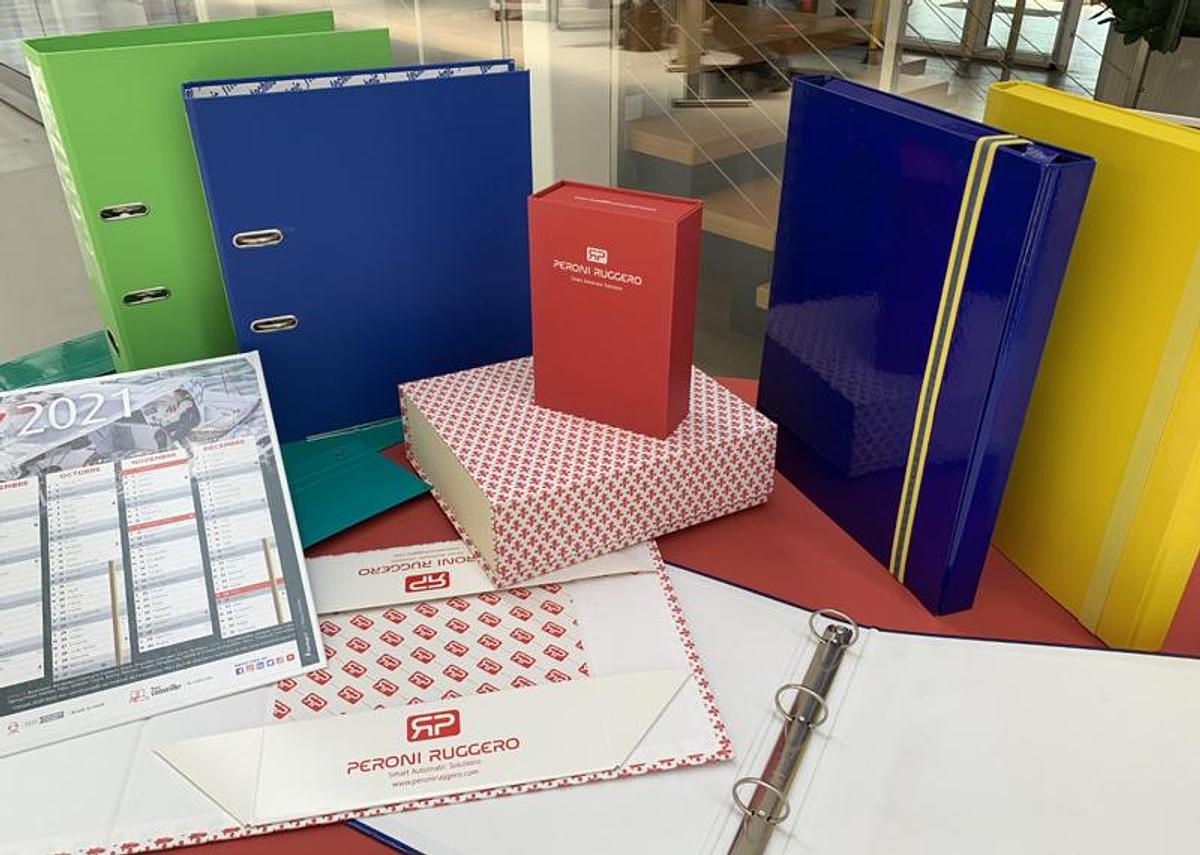

The PLS-EVO 70/120-A is our new automatic glueing machine, capable of glueing paper, laminated paper, thin cardboard, corrugated board, and paper-based fabric. Thanks to its versatility, it’s possible to produce a wide range of products such as displays and calendars, board games, cards, coasters, ring binders and multi-piece covers, photo albums, rigid and collapsible boxes, folders and much more.

Features

• Automatic high-pile Paper feeder
• Glueing unit equipped with a pump for vinylic glue and a glue tank for hot-animal glue with a pre-melter and a viscometer. The glue rollers are heated internally to ensure the glue's stability and consistent characteristics.
• Vacuum conveyor belt to handle glued paper
• Thinboard & corrugated cardboard High Pile feeder directly from a pallet
• Ideal for collapsible boxes, rigid cases, ring binders, and luxury packaging
• Handles paper, laminated paper, and all board materials
• SCARA Robot for picking and placing the material on the glued paper
• Rolling press calendar and delivery unit with piling-up system (75cm max stack height).
• Designed for packaging, print finishing, and bookbinding industries
• Reliable performance for medium- to high-volume production

TECHNICAL DETAILS

• Used Materials: paper, laminated paper, thin board, corrugated cardboard, hot animal glue, cold glue.
• Paper size: • min. 170 x 120mm – max 1240 x 740mm
• Paper thickness: min. 100gsm up to 150gsm
• Corrugated Cardboard: • min. 130 x 130mm – max 1200 x 700mm, thickness: 0.5 - 3mm
• Accuracy: ± 0,75mm. For the machine to perform well, materials must be free of defects and have regular shapes and size.
• Average make-ready time: 15 mins.
• Mechanical speed: 800 cycles/hour
• Operator/s req.: nr.1.
• Overall dimensions: 4.900mm x 2.300/3.000mm x (h) 1.300mm.
• Equipped with Modem support for “off-site diagnostics”



If you require more information or a brochure, please contact us directly on +44 1582 562518
